As a subcontractor using Bid Board Pro, you can create quantity takeoffs to keep track of the quantities of materials needed to complete a project. Takeoff information is private to your company in BuildingConnected and can be exported as a CSV when you are ready to incorporate your pricing.
If you are interested in learning more about the quantity takeoffs and other Bid Board Pro features, please contact our sales team.
Create a takeoff

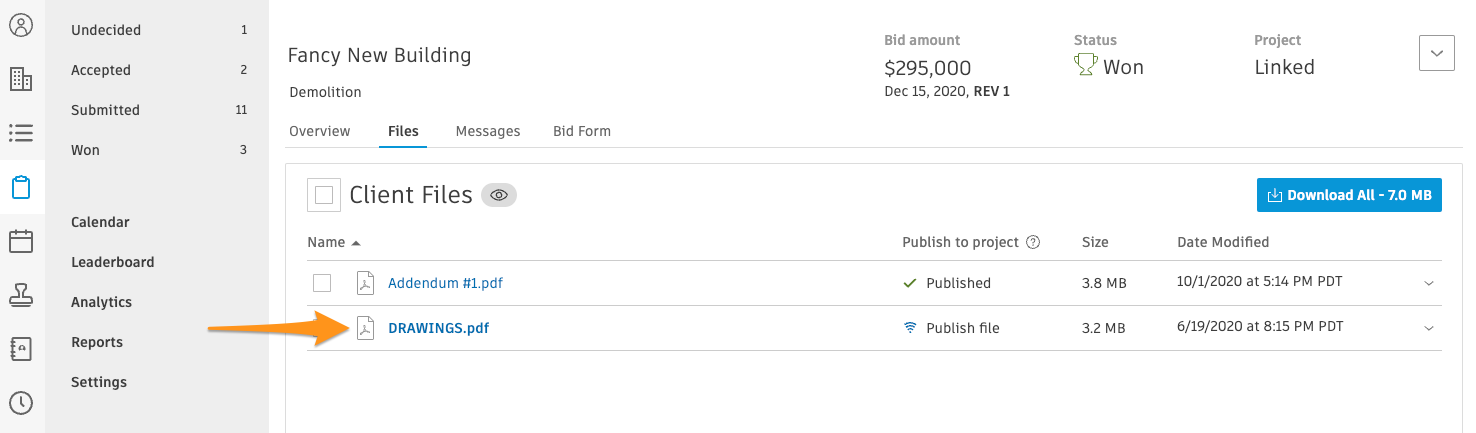

Navigate to the Files tab of your opportunity and click on the file that you wish to edit.

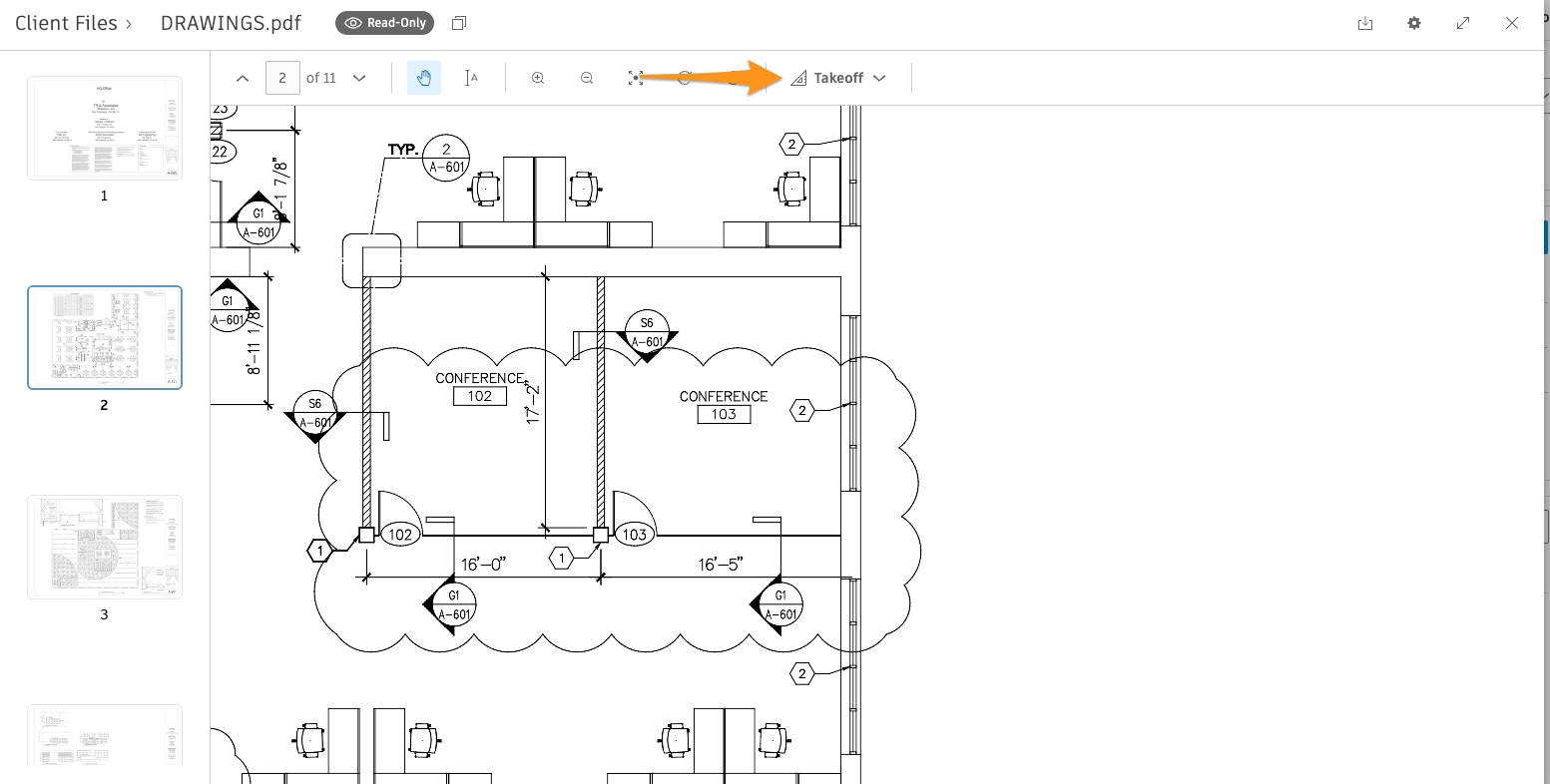

If necessary, navigate to the sheet you wish to work on and click the "Takeoff" triangle ruler icon to get started.
The scale of your quantity takeoff must be set prior to measuring every time a sheet is opened. The scale will remain set until you leave the sheet.

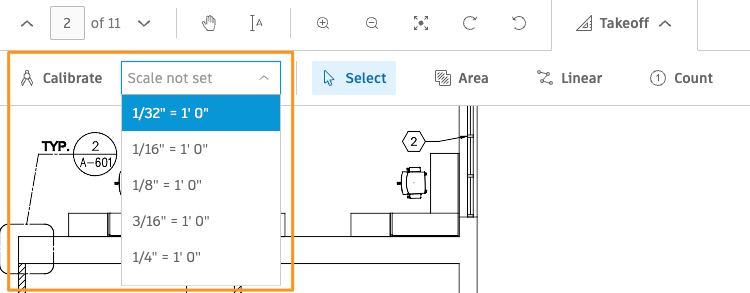

In the toolbar that appears, click "Calibrate" to set a custom scale or select a scale from the drop-down menu.

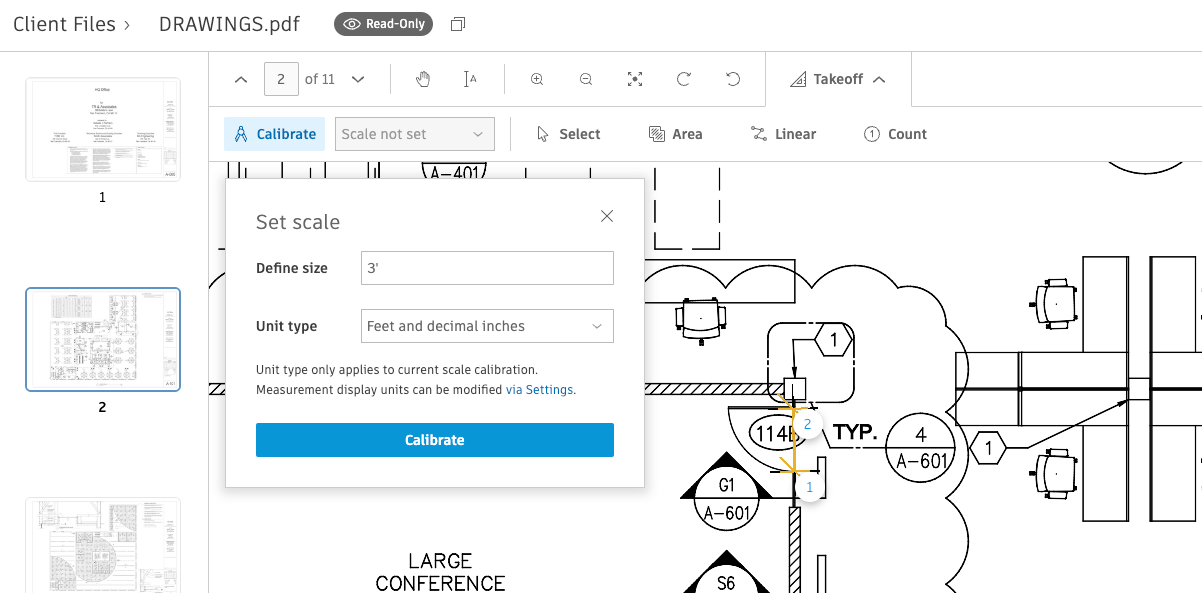

To calibrate, draw two points on the canvas with a known distance between them. Enter the real size in the calibration modal and click "Calibrate".

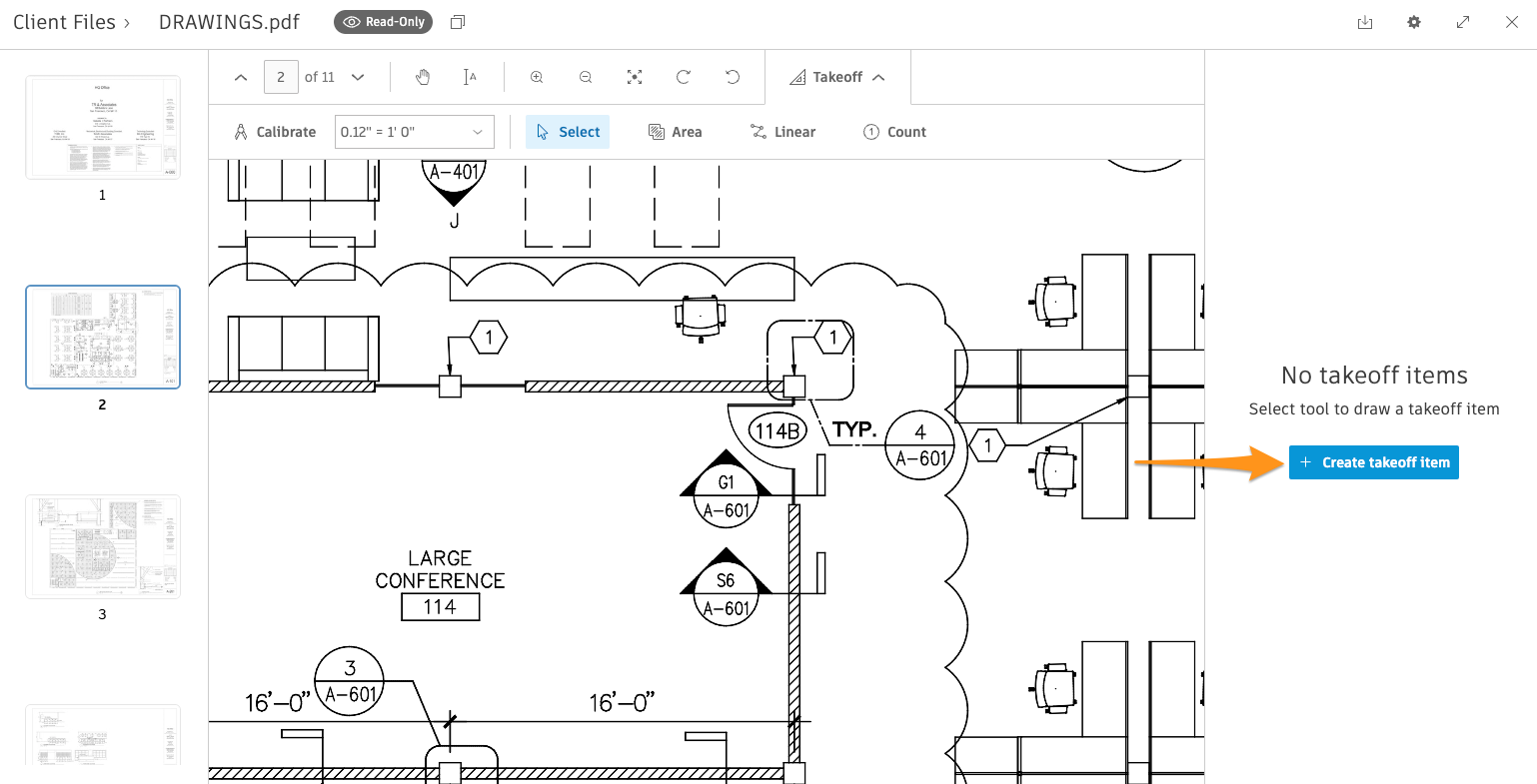

Put the area you want to takeoff into view. Click "Create takeoff item".

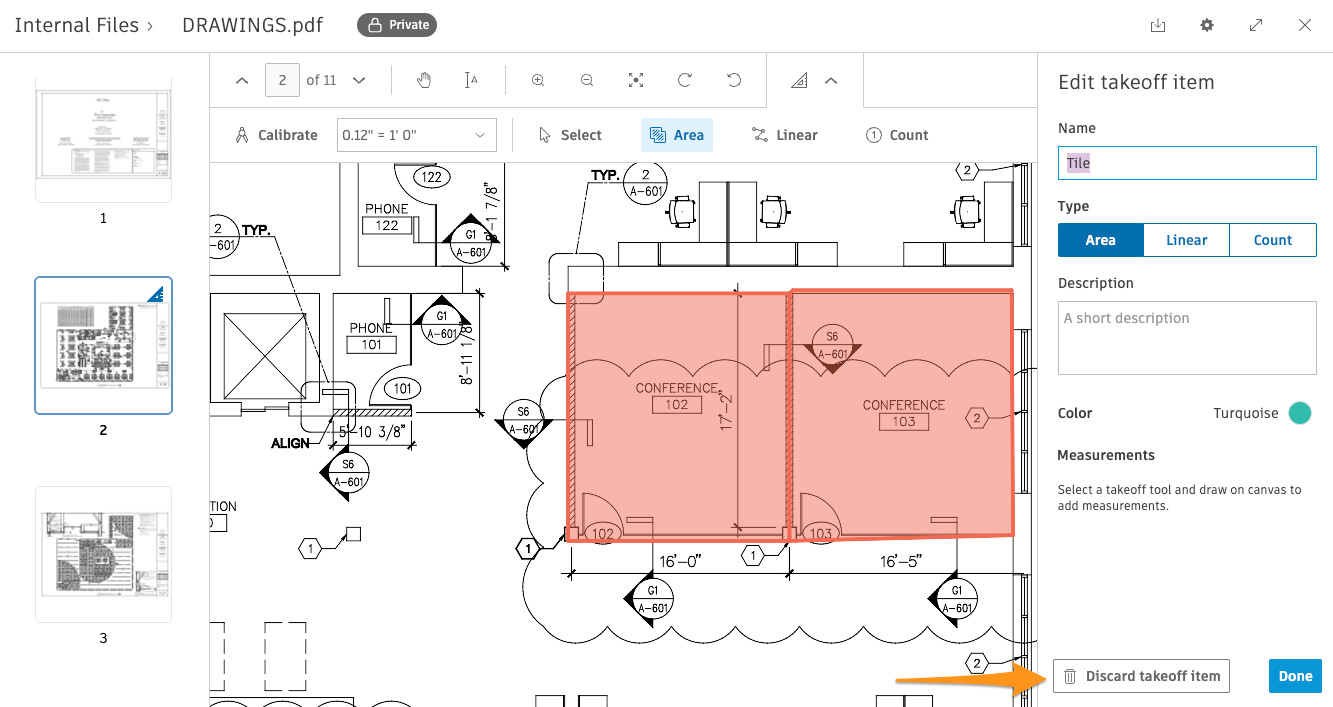

In the side panel, enter a name, choose the item type (area, linear, count), enter a short description, and select a color for the takeoff.

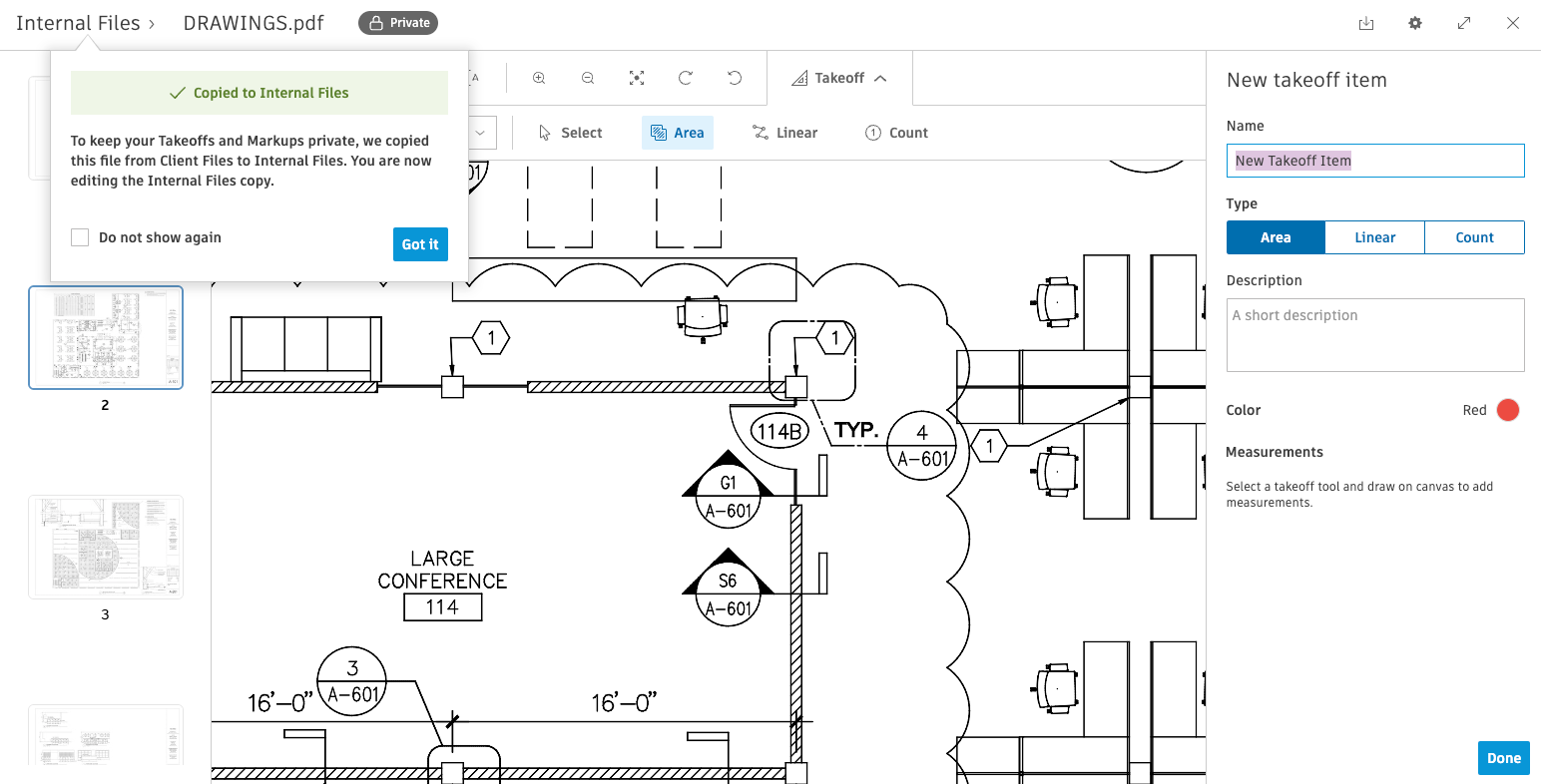

Note: You will receive an alert that the file has been copied to Internal Files in order to save your takeoffs. Click "Got it" to dismiss the top-left window. Learn more about internal files here.
Draw on the canvas:
- Area: Click and drag on the canvas to draw a rectangle, or click various points on the canvas to create a polygon.
- Linear: Click multiple points on the canvas to draw a line segment between them.
- Count: Click on the canvas. A circle will appear where the mouse was clicked.

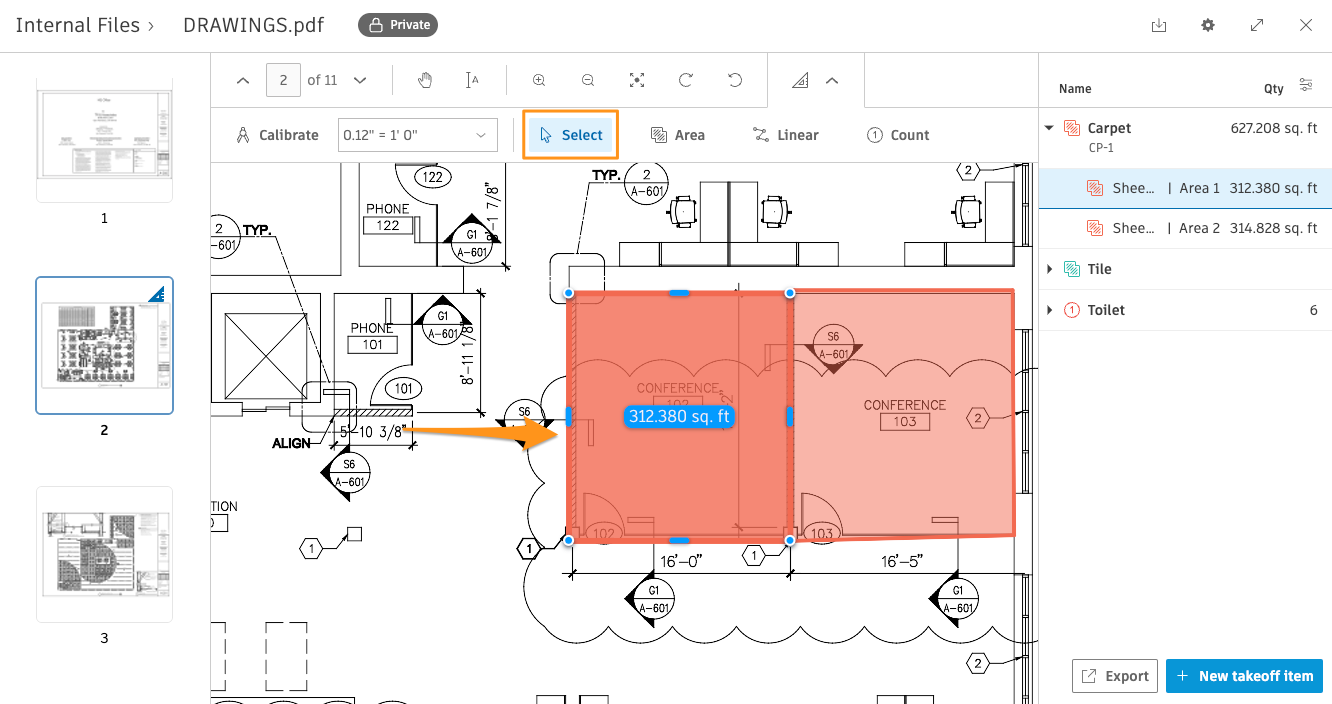

To edit a takeoff or move across the sheet to create another measurement, click on the Select tool in the top toolbar. Click on a takeoff item to edit its shape or hold and drag to move around the sheet.

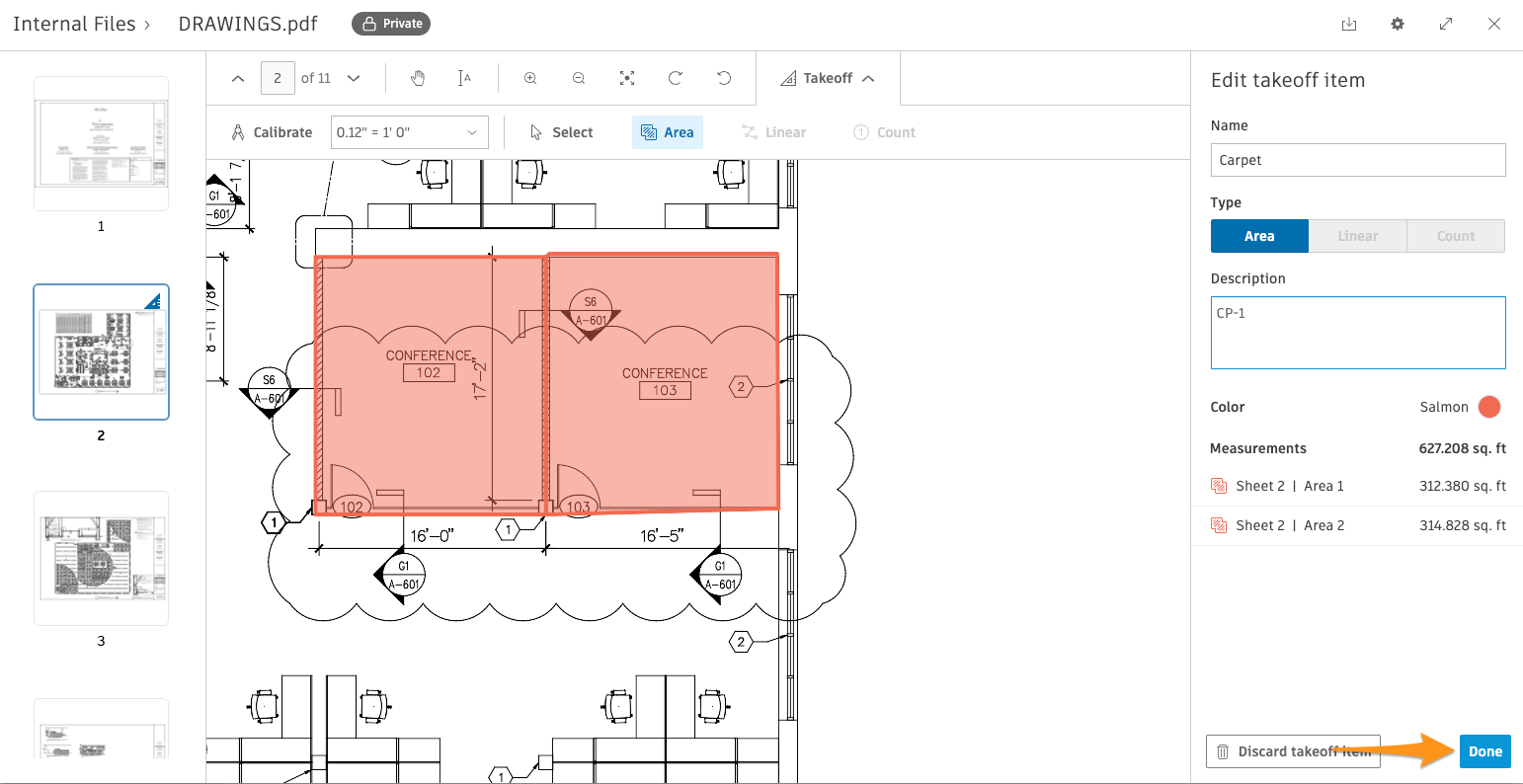

Click "Done" to stop performing takeoff.
Perform additional takeoffs

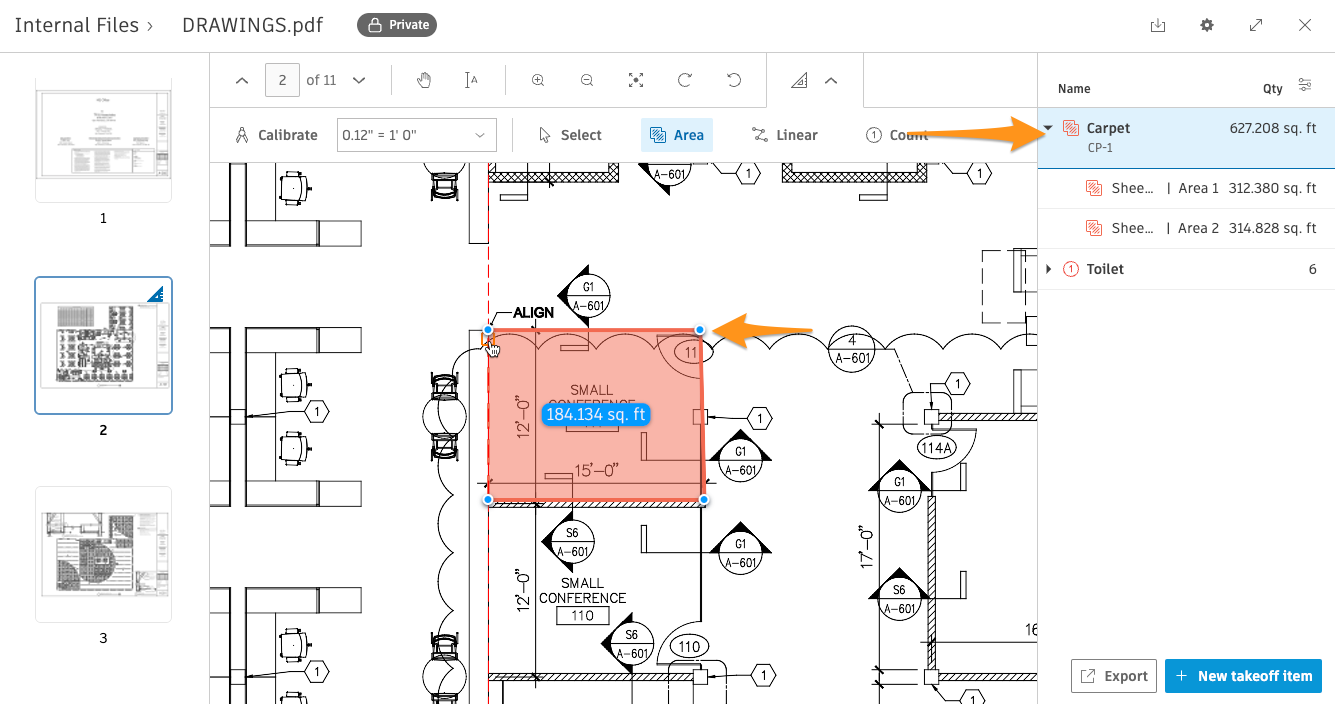

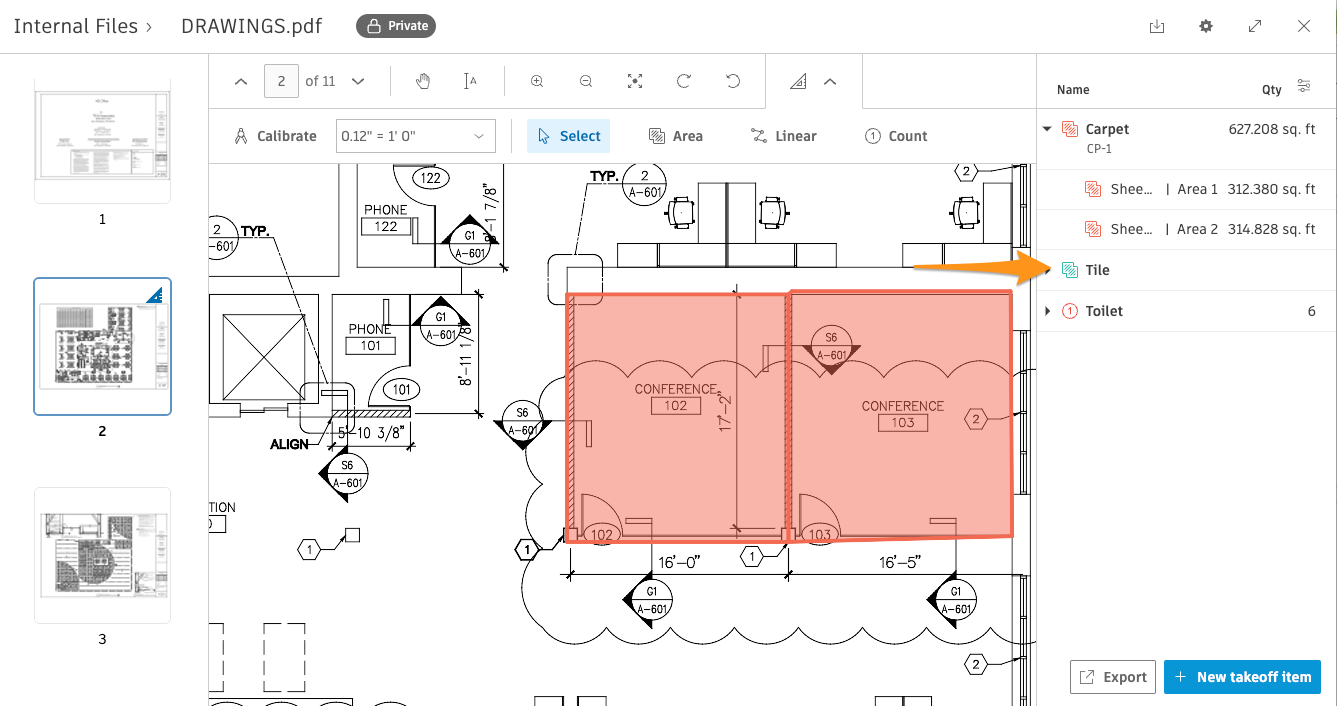

To perform additional measurements for any takeoff items, click on the takeoff item name in the right panel. Start drawing or counting accordingly.
Click on the Select tool in the top toolbar to stop performing takeoff.
View and navigate through your takeoffs

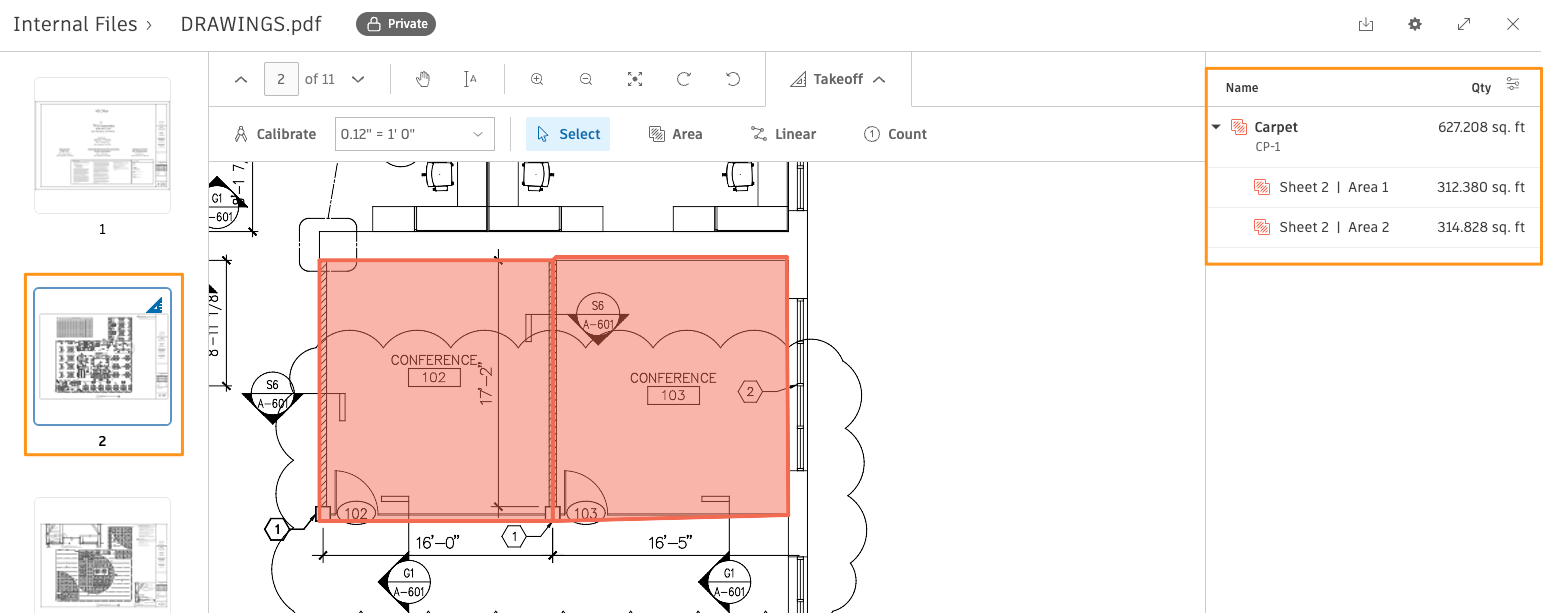

To find your quantity takeoffs, look for the blue triangle icon on the corner of drawings on the left-hand panel or click on a specific takeoff item on the right panel to bring that measurement into view.
Delete an individual takeoff measurement
To delete an individual takeoff, use the Select tool to click the item on the canvas or select it via the takeoff panel and press "Delete" on your keyboard ("fn + Delete" for Mac).
Delete a takeoff item
To delete a takeoff item and all the measurements under that item, double-click on it on the right panel.
Click "Discard takeoff item".
Export takeoff quantities

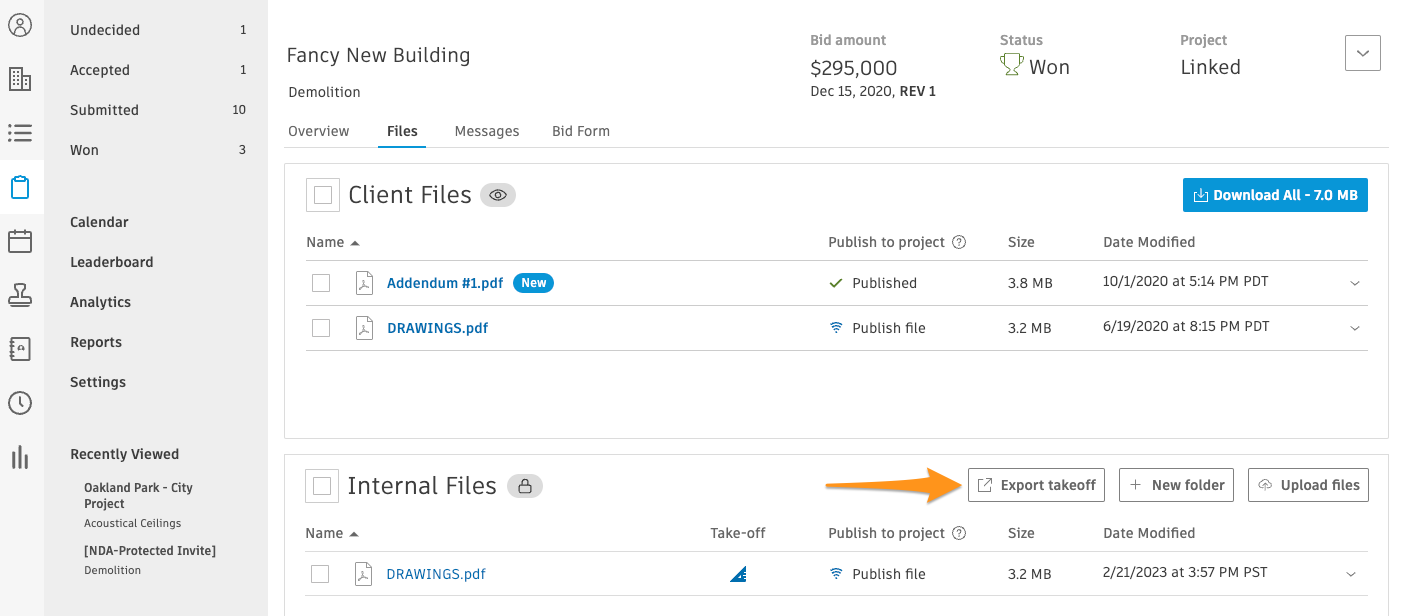

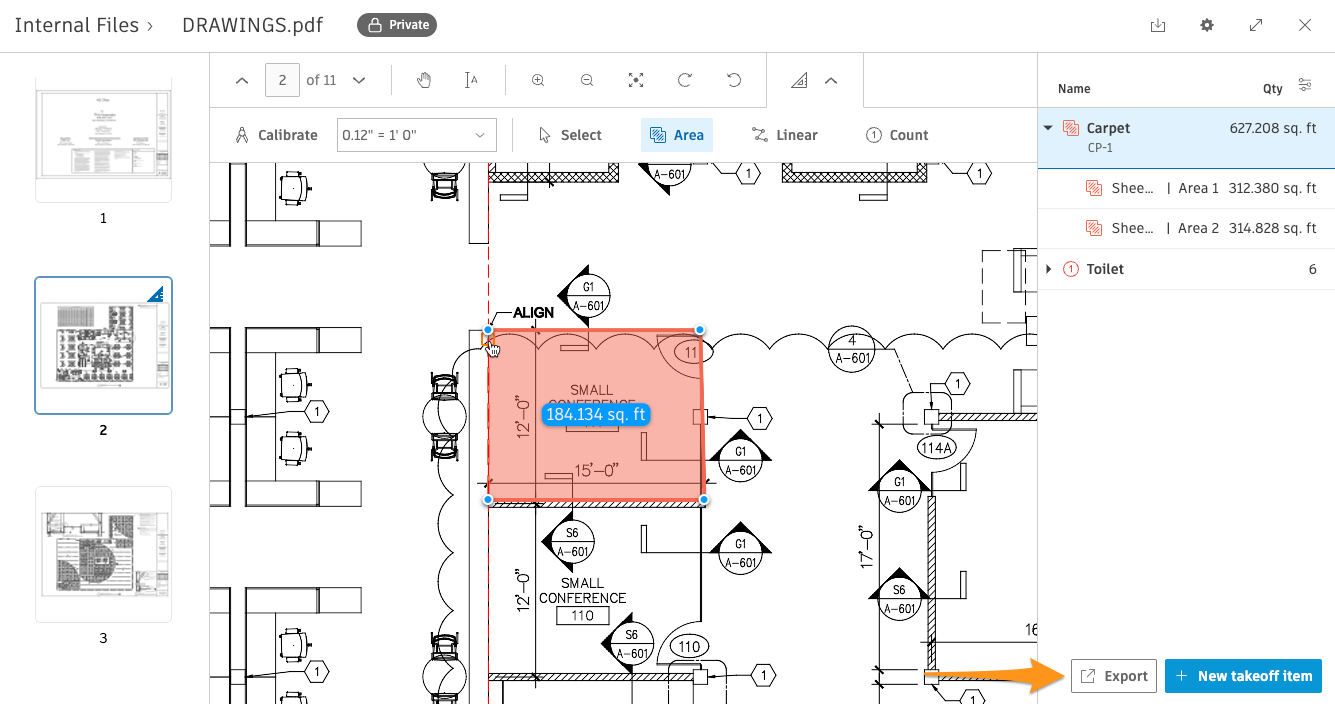

Click “Export” from the takeoff list view.
The takeoff can also be exported from the Internal Files section. This will export all takeoff items from all files in the opportunity as a CSV.
Frequently Asked Questions
Can I download the plans with my takeoff drawings on them?
Currently, we do not have the ability to download the plans with your takeoffs on them. The "Export" function provides a .csv with the takeoff values. If a picture is needed, a possible solution would be to take a screenshot of the plans while in the Takeoff tool.
Can I create a new version of my existing takeoff?
You cannot create direct copies of your takeoff at this time. Instead, we suggest that you (1) modify the existing takeoff and export alternate quantities or (2) create a new copy of the original client file and restart the takeoff with the same quantity names.
Who can view my takeoff?
The takeoff is stored in the Internal Files section of your account. Files in this section are only visible to you and other users in your company. The takeoff is not viewable by general contractors or vendors.
Keyboard shortcuts for takeoffs
- C - completes measurement if drawing is in progress
- Enter (Return on Mac) - completes measurement if drawing is in progress
- Delete (Fn + Delete on Mac) - Deletes a selected shape
- Backspace (Delete on Mac) - Undoes last drawn segment if drawing is in progress, or deletes a selected point / line segment
- Ctrl + C - Copies a selected shape
- Ctrl + V - Pastes a selected shape
- Ctrl + Click - Adds a point to an existing shape or line
- Ctrl + Z - Undoes last action
